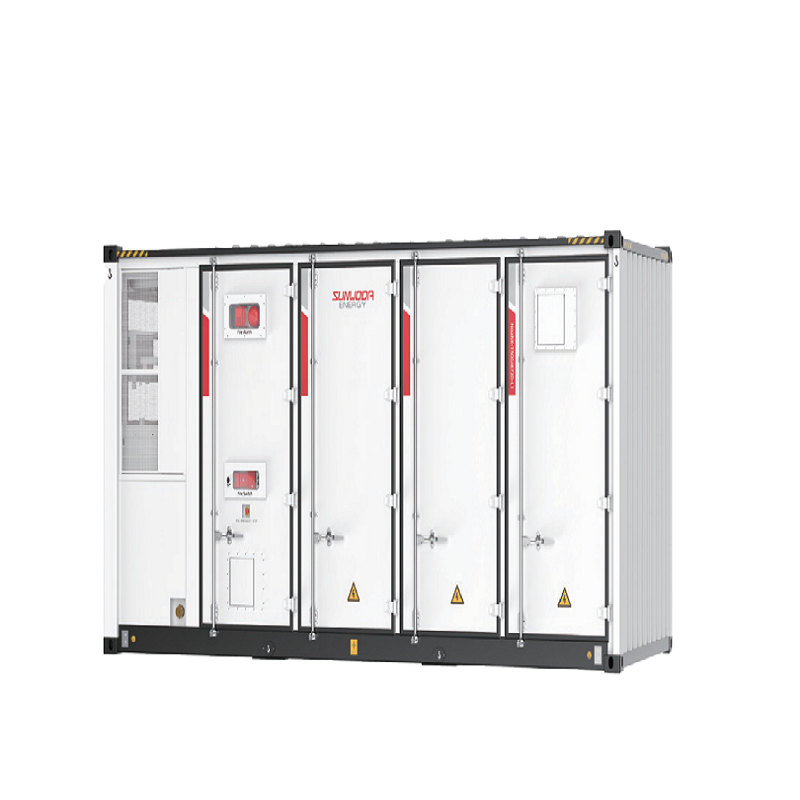

Sunwoda- NoahX 1500/6528 Kwh
Sunwoda LBCS (liquid -cooling Battery Container System) is a versatile industrial battery system used in Grid or in Industry Area with liquid cooling shipped in a 20-foot container. The standard unit is prefabricated with a modular battery cluster, fire suppression system, water cooling unit, and local monitoring. LBCS is a ready-to-connect solution for energy storage applications such as peak shifting and frequency regulation. Sunwoda battery 625Ah cluster modular unit consists of a standard rack-based battery module (battery pack) and a comprehensive multi-level battery management system (BMS). LBCS supports on-grid and off-grid working modes, and meet the needs of different scenarios (C&I)
Product Features
| Battery Type | LFP |
| Rated Power | 1500Kw (0.25P) |
| Nominal Energy (BOL) | 6528KWh |
| System Conversion Efficiency | >87% |
| Degree of Protection | ỊP55 |
| Fire Suppression System | Aerosol |
| Cooling | Liquid |
| Communication | MODBUS TCP/IP / RTU / CAN2.0B |
| Dimension (W*D*H) | 2438 × 6058 × 2896 mm (20HQ) |
| Standard | UL 9540, UL 9540A, Ul 1973, NFPA 855, IEC 62619 |
| Weight | 35T |
Technical Parameters
| Standards | Level | Status |
| UN38.3 | Pack & System | Available |
| CE-EMC | System | Available |
| IEC 62933-5-2 | System | Available |
| IEC 62619 | Rack | Available |
| IEC 60356 | Pack | Available |
| EN 62477-1 | System | Available |
| EN62109-1/2 | System | Available |
| GB/T 36276 | Rack & System | Available |
| UL 9540A | Pack and Rack | Available |
| UL 1973 | Rack | Available |
