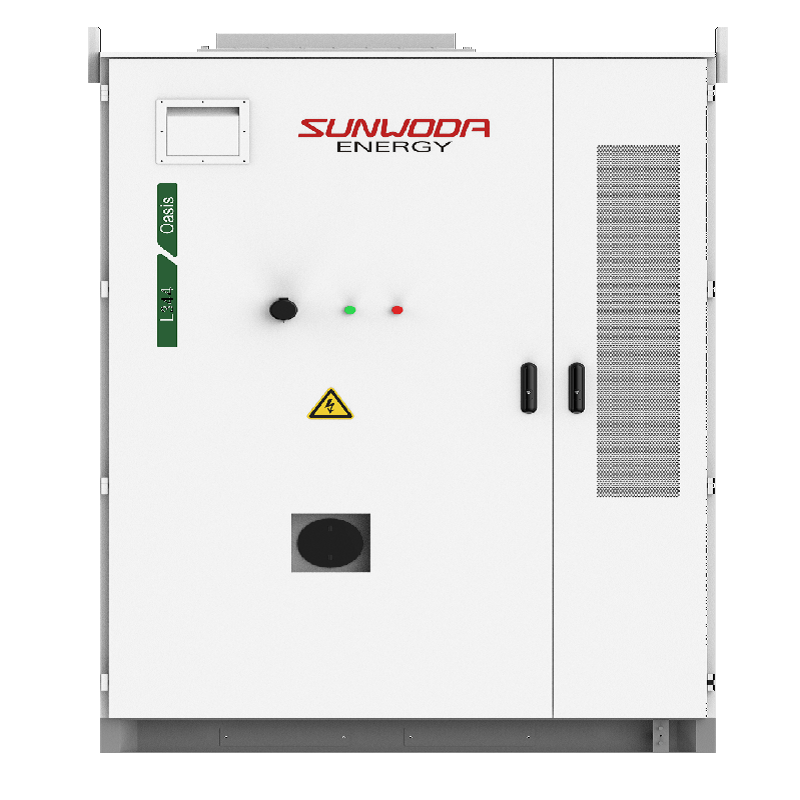

Sunwoda OASIX L344Kwh, 0.5C
Energy storage cabinet is designed for customer application with power and capacity range requirements of 100kW/215kWh. The system can flexibly scalable the battery cabinet according to customer needs. Flexible placement, saving space and creating low-carbon and high-yield solutions for different application scenarios.
a.Professional battery manufacturing factory, installed in place, convenient and quick
b.One-stop solution for customized energy storage system integration
c.Diversified customer needs, applicable to multiple scenarios
d.Intelligent operation and maintenance backstage, can view the system status, and easily obtain information
Product Features
| Standards | Level | Status |
| UN38.3 | Pack & Rack | Available |
| CE-EMC (IEC 61000) | Pack | Available |
| IEC 63056 | Pack | Dec 2025 |
| IEC 62619 | Rack | Available |
| GB/T 36276 | Pack and system | Available |
| UL 9540A | Rack | Available |
| UL 1973 | Rack | Available |

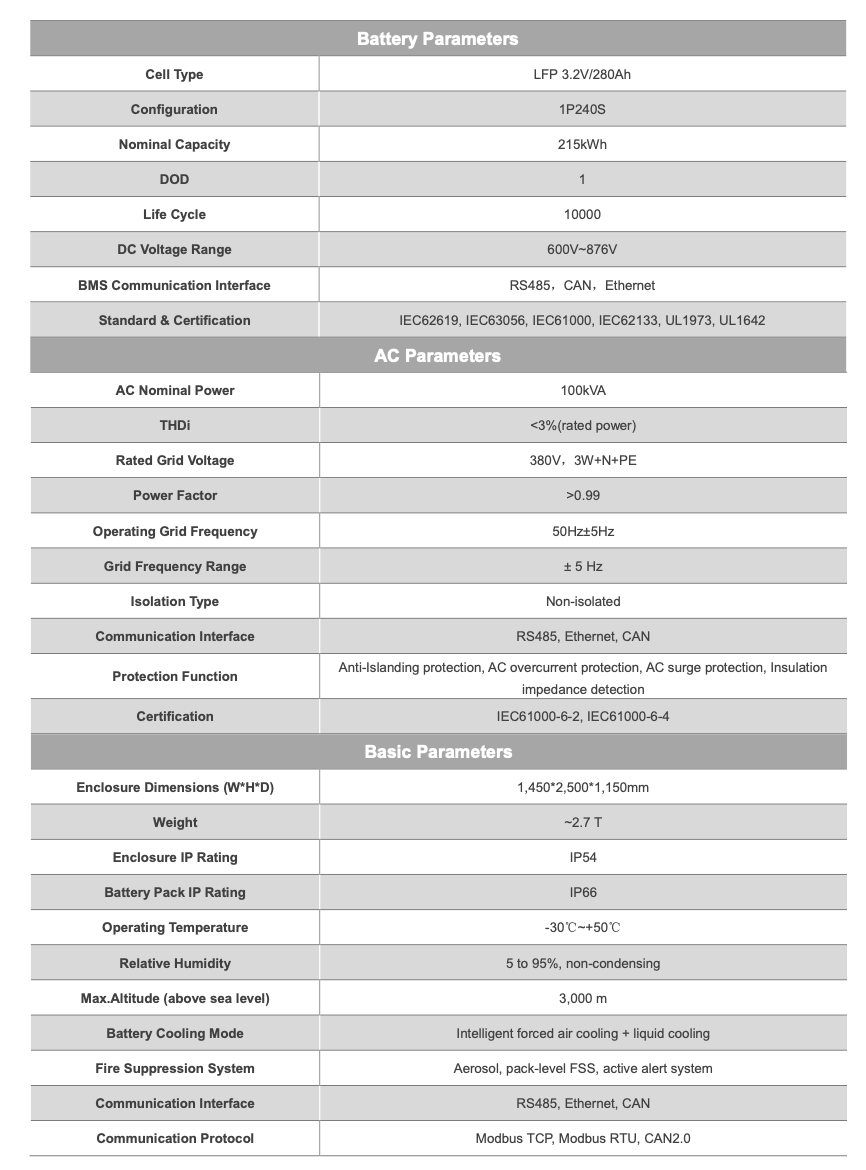

Technical Parameters
| Battery Type | LFP |
| Rated Power | 215KW or 344KW |
| Nominal Energy (BOL) | 215 & 344KWh, 0.5P, 1P |
| System Conversion Efficiency | >87% |
| Degree of Protection | ỊP55 |
| Fire Suppression System | Aerosol |
| Cooling | Liquid |
| Communication | MODBUS TCP/IP / RTU / CAN2.0B |
| Dimension (W*D*H) | 1570*1350*2380mm |
| Weight | 3.5T |
